Angle Drill Guide with Aluminum Stop and Millimeter Scale

Achieve flawless hole placements with this versatile drill guide, designed for precision and convenience. With a compact design and multiple angle options, it simplifies your woodworking tasks.

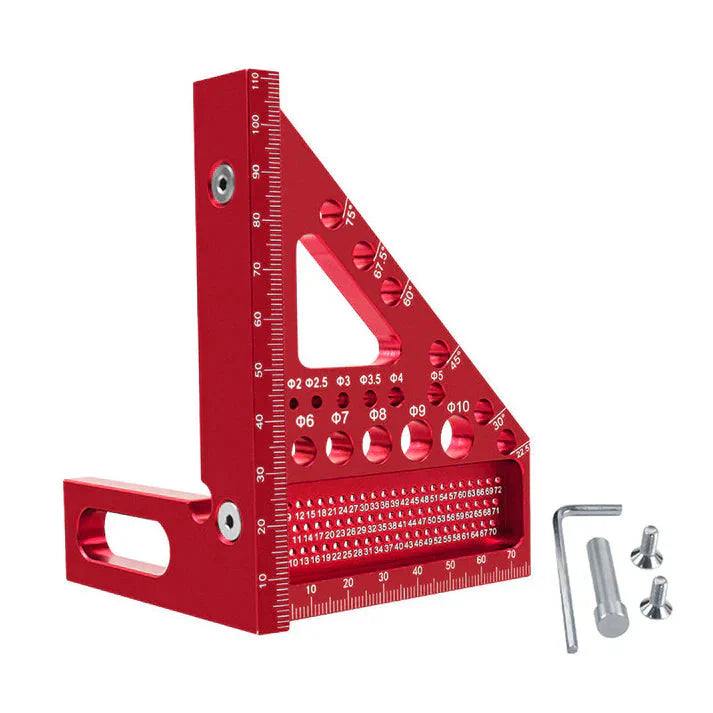

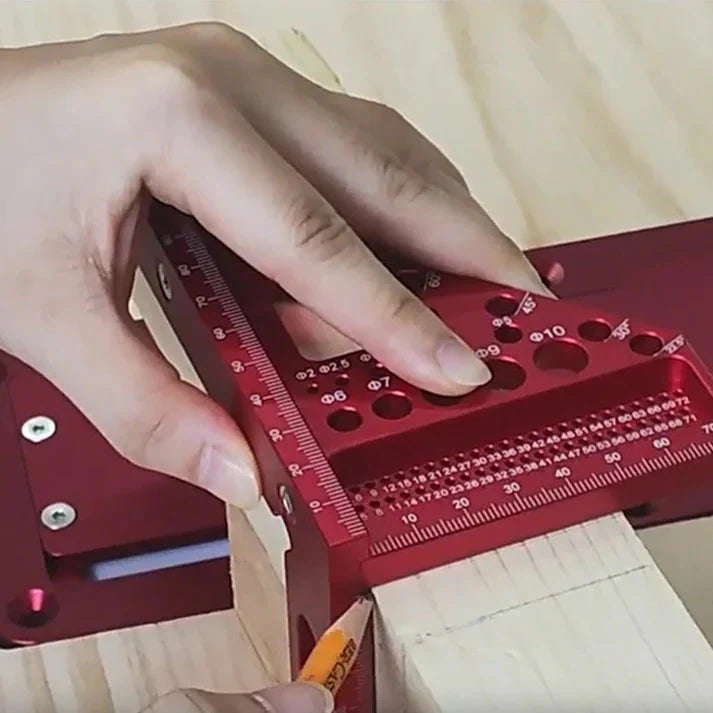

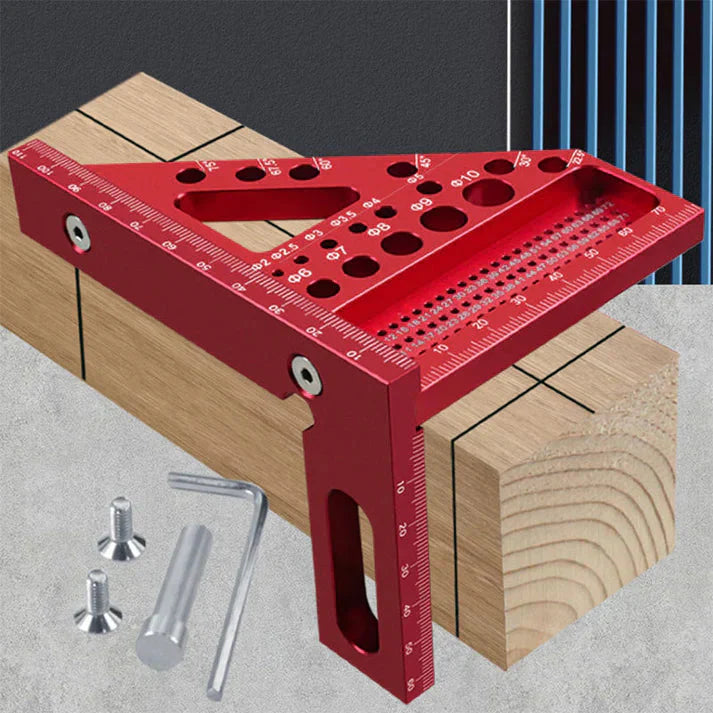

This sturdy aluminum tool combines a right-angle stop and an extensive set of drill guide holes, enhancing your drilling experience. Its L-shaped base ensures secure positioning against the workpiece edge, allowing for accurate marking or drilling without the need for clamping.

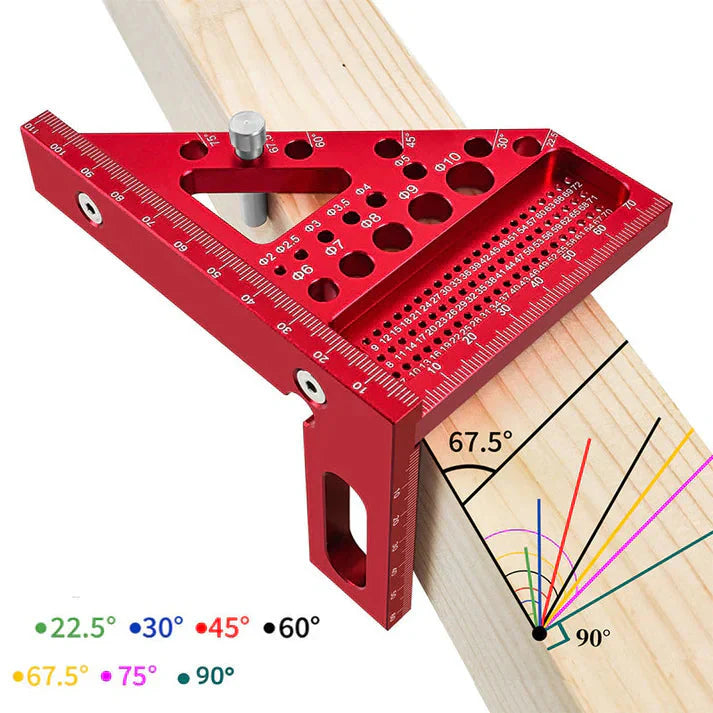

Featuring drill guide holes ranging from Φ2 mm to Φ10 mm, along with angle markings at 22.5°, 30°, 45°, 60°, 67.5°, and 75°, this tool covers a wide range of angles, making it perfect for various projects. The millimeter scale along both edges provides direct measurements, eliminating the hassle of switching tools.

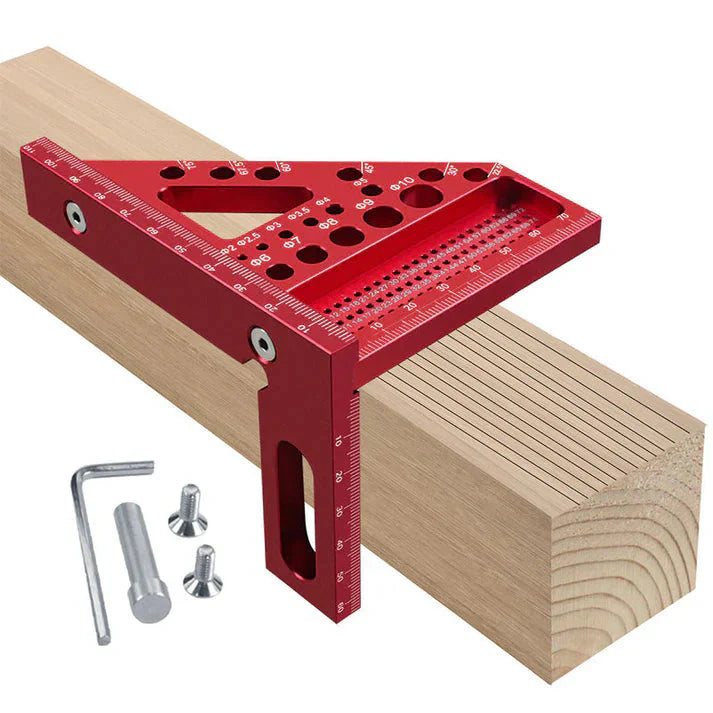

Constructed from anodized aluminum alloy, this tool is lightweight at just 140 g, ensuring durability against daily wear. The package includes a hex key, centering pin, and screws for immediate use.

Key Features

• Drill guide holes Φ2–Φ10 mm – enables precise hole placements without needing a separate template
• Six angle references (22.5°, 30°, 45°, 60°, 67.5°, 75°) – covers the most essential woodworking angles in one convenient tool
• L-shaped aluminum base – sits securely against the workpiece edge for accurate and repeatable positioning
• Millimeter scale on both edges – measure and mark directly, avoiding the need for an additional ruler
• Anodized aluminum alloy – lightweight (140 g), resilient, and resistant to corrosion
• Complete accessory set included – comes with a hex key, centering pin, and screws for quick setup

Technical Specifications

• Material: Aluminum alloy (anodized)
• Weight: 140 g
• Drill guide holes: Φ2, Φ2.5, Φ3, Φ3.5, Φ4, Φ5, Φ6, Φ7, Φ8, Φ9, Φ10 mm
• Angle markings: 22.5°, 30°, 45°, 60°, 67.5°, 75°, 90°

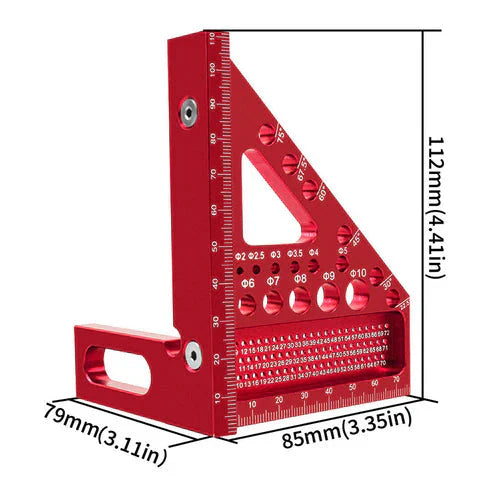

• Scale: Millimeter graduation on both outer edges (up to 70 mm horizontal / 110 mm vertical)
• Included items: 1 × square, 1 × hex key, 1 × centering pin, 2 × screws
• Usage notes: Ideal for woodworking and general workshop applications. Not intended as a certified precision instrument — suitable for DIY and home improvement projects.
